DESCRIPTION

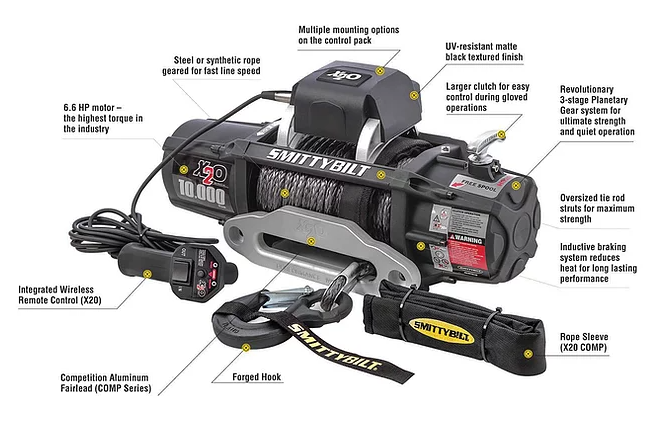

This generation of Smittybilt X20 winches have been improved in almost every area for increased performance and durability. The new 6.6HP amphibious motor is connected to a 3-stage planetary gear system with revised gear ratios for better pulling power and lightning fast line speed. The completely waterproof, state-of-the-art 500AMP solenoid has the flexibility to be mounted in various locations depending on your specific needs. This winch is finished in a rugged UV-resistant matte black coating with stainless steel hardware, oversized aluminum cross bars, a fairlead and a forged hook.

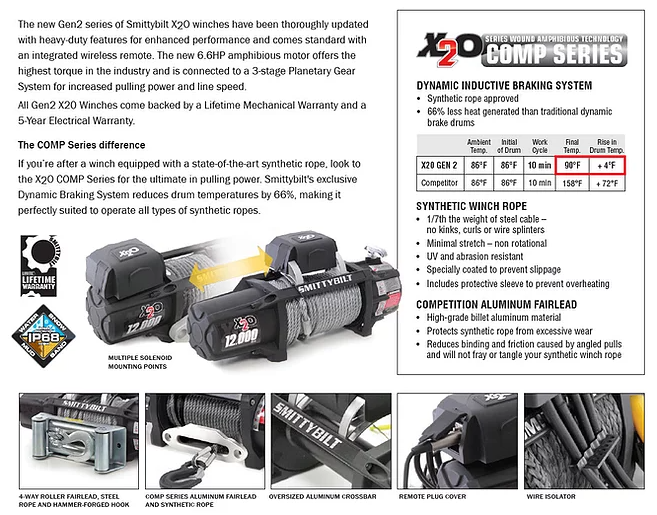

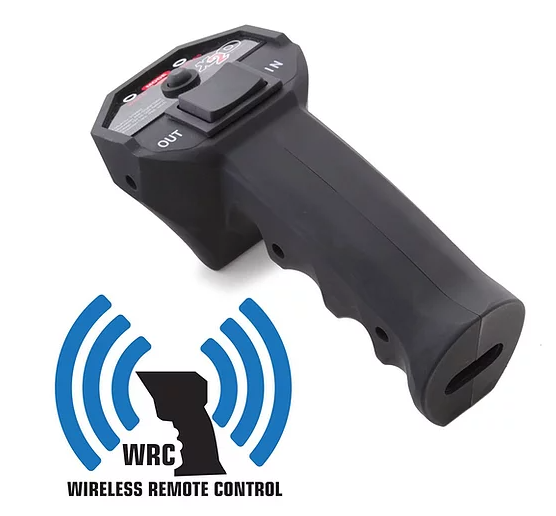

This top of the line X20 Series winch features a wireless remote control that is able to be wired directly to the winch or unplugged for a trouble-free wireless application. The X20 Competition Series includes all the features and benefits of the original series, but is equipped with a stronger synthetic rope, Competition aluminum fairlead and dynamic braking system. This exclusive braking feature reduces drum temperatures by 66%, making it suited to operate all types of synthetic ropes.
SPECIFICATIONS
Waterproofing: IP68 rating
Rated Line Pull: 10,000lbs (4,545 kgs) single line
Motor: 6.6hp series wound
Control: remote switch, 12 ft. (3.7m) lead
Gear train: 3-stage planetary
Gear ratio: 218:1
Clutch: sliding ring gear
Brake: Automatic out-of-drum
Drum size: diameter 2.5”
Cable: 98.5 ft. 3/8-inch diameter
Cable type: synthetic rope
Fairlead: Hawse
Remote control: included - Integrated wireless remote
Recommended battery: 650CCA minimum for winching
Battery leads: 25mm2, 72” (1.83m)1
Finish: textured black
Weight: 67.0lbs (30.4kgs)
Mounting bolt pattern: 10.0” x 4.50”
Kindly contact us before purchasing this product. We order this product on demand for Customers therefore there is a waiting period.
